ПЕРЕВОДНИКИ НИППЕЛЬНЫЕ (PIN x PIN)

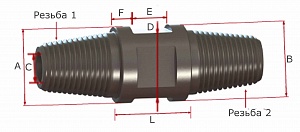

Резьба Размеры, мм Каталожный номер
1 Ниппель 2 Ниппель L A В С D E F
ACT(NWY) ACT(NWY) 90 67 67 30 55 40 25 6102-1701
ACT(NWY) RD 50-6 85 70 70 30 55 40 25 6102-1702
ACT(NWY) 2 3/8" Reg 70 76 76 30 65 40 15 6102-1703
ACT(NWY) 2 3/8" IF 70 76 76 30 65 40 15 6102-1704
ACT(NWY) 3 1/2" Reg 70 114 114 30 95 50 10 6102-1705
AWJ RD 40-6 60 51 51 13 40 40 10 6102-1706
NC 35 2 7/8" IF 90 115 115 53 95 50 20 6102-1707
NC 35 3 1/2" IF 90 120 120 58 95 50 20 6102-1708
RD 40-6 CR 60 90 60 60 20 50 40 25 6102-1709
RD 40-6 RD 40-6 90 51 51 22 41 40 25 6102-1710
RD 40-6 RD 50-6 90 55 70 22 55 40 25 6102-1711
RD 50-6 CR 60 90 76 60 20 65 40 25 6102-1712
RD 50-6 RD 50-6 70 60 60 30 48 40 15 6102-1713
RD 50-6 RD 50-6 70 70 70 30 65 40 15 6102-1714
RD 50-6 2 3/8" Reg 60 76 76 30 65 40 10 6102-1715
RD 70-4 RD 70-4 70 89 89 43 65 40 15 6102-1716
RD 70-4 RD 70-4 250 89 89 43 65 40 20 6102-1717
RD 70-4 RD 70-4 440 89 89 43 65 40 80 6102-1718
RD 70-4 2 3/8" Reg 70 89 89 30 65 40 15 6102-1719
RD 70-4 2 3/8 Reg 440 89 89 30 65 40 385 6102-1720
RD 70-4 2 7/8" IF 92 89 115 43 65 40 15 6102-1721
RD 70-4 3 1/2" Reg 97 89 115 43 95 50 22 6102-1722
2 3/8" Reg HW 80 89 89 30 65 40 20 6102-1723
2 3/8- Reg RD 40-6 80 76 55 22 65 40 20 6102-1724
2 3/8" Reg 2 3/8" Reg 70 76 76 30 65 40 15 6102-1725
2 3/8" Reg 2 3/8" Reg 70 89 89 30 65 40 15 6102-1726
2 3/8" Reg 2 3/8" Reg 250 89 89 30 65 40 20 6102-1727
2 3/8" Reg 2 3/8" Reg 305 89 89 30 65 40 20 6102-1728
2 3/8* Reg 2 3/8" IF 80 89 89 30 65 40 20 6102-1729
2 3/8" Reg 2 7/8" Reg 70 89 89 30 65 40 15 6102-1730
2 3/8' Reg 2 7/8" Reg 70 89 89 30 80 40 15 6102-1731
2 3/8" Reg 2 7/8" IF 100 89 114 30 95 50 25 6102-1732
2 3/8" IF 2 3/8" IF 70 89 89 43 65 40 15 6102-1733
2 3/8" IF 2 7/8" Reg 70 89 89 38 65 40 15 6102-1734
2 7/8" Reg 2 7/8" Reg 70 89 89 36 75 40 15 6102-1735
2 7/8" Reg 3 1/2" Reg 100 100 115 34 95 50 25 6102-1736
2 7/8" Reg 6 5/8" Reg 120 100 178 34 152 50 45 6102-1737
2" Z 2" Z 70 76 76 25 65 40 15 6102-1738
3 1/2" Reg NC 35 90 114 114 43 95 50 20 6102-1739
3 1/2" Reg RD 110-4 100 140 140 43 120 50 25 6102-1740
3 1/2" Reg 2 3/8" Reg 97 114 89 30 95 50 23 6102-1741
3 1/2" Reg 2 3/8" IF 100 114 89 43 95 50 25 6102-1742
3 1/2" Reg 2 7/8" IF 90 114 114 43 95 50 20 6102-1743
3 1/2" Reg 3 1/2" Reg 75 114 114 43 95 50 12 6102-1744
3 1/2" Reg 3 1/2" Reg 90 114 114 43 95 50 20 6102-1745
3 1/2" Reg 3 1/2" Reg 90 127 127 43 95 50 20 6102-1746
3 1/2 Reg 3 1/2 Reg 100 120 140 43 120 50 25 6102-1747
3 1/2" Reg 3 1/2" IF 90 120 120 43 95 50 20 6102-1748
3 1/2" Reg 4 1/2" Reg 100 146 146 43 120 50 25 6102-1749
3 1/2" IF 2 3/8" Reg 90 114 89 30 95 50 20 6102-1750
3 1/2" IF 2 3/8" IF 100 114 89 43 95 50 25 6102-1751
3 1/2" IF 2 7/8' IF 100 114 114 53 95 50 25 6102-1752
3 1/2" IF 3 1/2" IF 100 114 114 58 95 50 25 6102-1753
3 1/2" IF 6 5/8" Reg 150 120 197 58 178 50 60 6102-1754
4 1/2" Reg 4 1/2" Reg 100 140 140 58 120 50 25 6102-1755
5 1/2" IF 5 1/2" IF 400 197 197 70       6102-1756
6 5/8' Reg 4" IF 560 199 145 76 115 65 430 6102-1757
GG 2" GG 2" 100 70 70 25 50 50 25 6102-1758
GG 2" M62 108 70 83 30 55 25 20 6102-1759
GG 2" R 2" 224 76 76 21       6102-1760
GG 2 3/8" R 2" 226 89 89 25       6102-1761
TR 52 R 1 1/2" 317 68 68 21       6102-1762
2 3/8" Reg M62 139 76 76 30 70 25 12 6102-1763
2 3/8" Reg M62 89 89 89 30 70 25 20 6102-1764
2 3/8" Reg M62 89 89 89 30 80 25 20 6102-1765
2 3/8" Reg M62 139 89 89 30 70 25   6102-1766
2 3/8" Reg R 2" 226 76 76 30       6102-1767
2 3/8" Reg R 2" 226 83 83 30       6102-1768
2 3/8" Reg R 2" 226 89 89 30       6102-1769
2 3/8" Reg R 3" 226 127 127 30       6102-1770
3 1/2" Reg R 3" 224 114 114 39       6102-1771
3 1/2" Reg R 3" 219 127 127 39       6102-1772
