ПЕРЕВОДНИКИ ПЕРЕХОДНЫЕ (BOX x PIN)

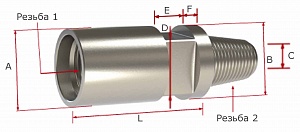

Резьба Размеры, мм Каталожный номер
1 Муфта 2 Ниппель L A В С D E F
NC 35 NC 35 165 114 114 58 95 50 20 6102-1001
NC 35 2 7/8" Reg 165 114 114 36 95 50 20 6102-1002
NC 35 2 7/8" IF 165 114 114 53 95 50 20 6102-1003
NC 35 3 1/2" Reg 165 114 114 43 95 50 20 6102-1004
NC 35 3 1/2" IF 165 114 114 58 95 50 20 6102-1005
NC 35 4 1/2" Reg 140 114 146 58 120 50 20 6102-1006
NC 35 4 1/2" FH 140 114 146 76 120 50 20 6102-1007
NC 35 6 5/8" Reg 173 146 197 80 178 50 20 6102-1008
2" Z Beco 3" 100 82 102 38 65 75 25 6102-1009
2" Z 2 3/8" Reg 106 74 79 30 65 75 31 6102-1010
2" Z 3 1/2" Reg 100 82 102 38 66 75 25 6102-1011
2" Z 3 1/2" Reg 165 76 115 38 65 40 65 6102-1012
2 1/4" Z 2 3/8" Reg 140 89 89 30 65 40 20 6102-1013
2 1/2" Z 3 1/2" Reg 100 96 102 43 85 76 24 6102-1014
RD 40-6 2 3/8 Reg 135 76 76 30 65 40 27 6102-1015
RD 50-6 RD 50-6 114 70 70 30 55 40 15 6102-1016
RD 50-6 RD 50-6 155 70 70 30 55 40 15 6102-1017
RD 50-6 RD 50-6 350 70 70 30 55 40 15 6102-1018
RD 50-6 2 3/8" Reg 135 76 76 30 65 40 27 6102-1019
RD 70-4 RD 50-6 155 89 89 30 65 40 30 6102-1020
RD 70-4 RD 70-4 155 89 89 43 65 40 20 6102-1021
RD 70-4 RD 70-4 460 89 89 43 65 40 20 6102-1022
RD 70-4 RD 704 700 89 89 43 65 40 576 6102-1023
RD 70-4 2 3/8' Reg 139 89 89 30 65 40 15 6102-1024
RD 70-4 2 3/8" Reg 152 89 89 30 65 40 28 6102-1025
RD 70-4 2 3/8* IF 144 89 89 43 65 40 15 6102-1026
RD 70-4 3 1/2" Reg 155 114 114 43 95 50 20 6102-1027
2 3/8' Reg ACT(NWY) 145 76 76 30 65 40 20 6102-1028
2 3/8- Reg AWJ 145 76 76 13 65 40 20 6102-1029
2 3/8- Reg Beco 3' 101 90 102 38 76 76   6102-1030
2 3/8" Reg GG 2" 140 89 89 25 65 40 17 6102-1031
2 3/8' Reg Ha us 470 76 76 25       6102-1032
2 3/8- Reg HS-6 154 89 89 38 65 50 21 6102-1033
2 3/8- Reg HW 145 89 89 43 65 40 20 6102-1034
2 3/8' Reg NW 150 76 67 30 65 40 25 6102-1035
2 3/8' Reg RO 40-6 145 76 76 22 65 40 27 6102-1036
2 3/8- Reg RD 50-6 145 76 76 30 65 40 27 6102-1037
2 3/8- Reg RD 56-6 125 76 76 30       6102-1038
2 3/8* Reg RD 70-4 145 89 89 43 65 40 15 6102-1039
2 3/8* Reg RD 70-4 250 89 89 43 65 40 15 6102-1040
2 3/8' Reg RO 70-4 340 89 89 43 65 40 215 6102-1041
2 3/8' Reg RO 70-4 350 89 89 43 65 40 25 6102-1042
2 3/8' Reg RO 70-4 440 89 89 43 65 40 315 6102-1043
2 3/8' Reg RD 70-4 440 89 89 43 65 40 140 6102-1044
2 3/8- Reg RD 70-4 460 89 89 43 65 40 335 6102-1045
2 3/8- Reg RO 70-4 500 89 89 43 65 40 375 6102-1046
2 3/8' Reg RO 70-4 500 89 89 43 65 40 30 6102-1047
2 3/8- Reg RO 70-4 550 89 89 43 65 40 15 6102-1048
2 3/8- Reg RD 70-4 600 89 89 43 65 40 470 6102-1049
2 3/8- Reg RD 70-4 600 89 89 43 65 40 15 6102-1050
2 3/8' Reg RD 70-4 320 100 100 43       6102-1051
2 3/8' Reg RD 70-4 440 102 102 43 65 40 315 6102-1052
2 3/8' Reg 2" Z 140 76 76 25 65 40 17 6102-1053
2 3/8' Reg 2 1/4" Z 140 89 89 25 65 40 25 6102-1054
2 3/8' Reg 2 1/2" Z 190 89 89 30 65 40 25 6102-1055
2 3/8" Reg 2 3/8" Reg 140 76 76 30 65 40 17 6102-1056
2 3/8" Reg 2 3/8" Reg 140 76 76 30       6102-1057
2 3/8" Reg 2 3/8" Reg 203 89 76 30 65 40 27 6102-1058
2 3/8' Reg 2 3/8" Reg 300 76 76 30 65 40 17 6102-1059
2 3/8" Reg 2 3/8" Reg 305 76 76 30       6102-1060
2 3/8" Reg 2 3/8" Reg 400 76 76 30 65 40 17 6102-1061
2 3/8" Reg 2 3/8" Reg 410 76 76 30 65 40 285 6102-1062
2 3/8" Reg 2 3/8" Reg 435 76 76 30 65 40 310 6102-1063
2 3/8" Reg 2 3/8" Reg 460 76 76 30 65 40 335 6102-1064
2 3/8" Reg 2 3/8" Reg 460 76 76 30       6102-1065
2 3/8" Reg 2 3/8" Reg 500 76 76 30 65 40 20 6102-1066
2 3/8" Reg 2 3/8" Reg 550 76 76 30 65 40 425 6102-1067
2 3/8" Reg 2 3/8" Reg 609 76 76 30 57 102 387 6102-1068
2 3/8" Reg 2 3/8" Reg 140 80 80 30 65 40 17 6102-1069
2 3/8" Reg 2 3/8" Reg 420 80 82,5 30 70 50 250 6102-1070
2 3/8" Reg 2 3/8" Reg 100 89 89 30       6102-1071
2 3/84 Reg 2 3/8" Reg 140 89 89 30 65 40 17 6102-1072
2 3/8* Reg 2 3/81 Reg 140 89 89 30       6102-1073
2 3/8" Reg 2 3/8" Reg 152 89 89 30 70 50 17 6102-1074
2 3/8" Reg 2 3/8' Reg 170 89 89 30 65 40 17 6102-1075
2 3/8" Reg 2 3/8" Reg 200 89 89 30 65 40 75 6102-1076
2 3/8* Reg 2 3/8" Reg 203 89 89 30 65 40 25 6102-1077
2 3/8" Reg 2 3/8" Reg 225 89 89 30       6102-1078
2 3/8" Reg 2 3/8" Reg 225 89 89 30 65 40 75 6102-1079
2 3/8" Reg 2 3/8" Reg 250 89 89 30 65 40 100 6102-1080
2 3/8" Reg 2 3/8" Reg 240 89 89 30 65 40 115 6102-1081
2 3/8" Reg 2 3/8" Reg 270 89 89 30 65 40 17 6102-1082
2 3/8" Reg 2 3/8" Reg 305 89 89 30       6102-1083
2 3/8" Reg 2 3/8" Reg 320 89 89 30 65 40 195 6102-1084
2 3/8" Reg 2 3/8" Reg 360 89 89 30 65 40 235 6102-1085
2 3/8" Reg 2 3/8" Reg 400 89 89 30 65 40 17 6102-1086
2 3/8" Reg 2 3/8" Reg 420 89 89 30 70 50 250 6102-1087
2 3/8" Reg 2 3/8" Reg 440 89 89 30 65 40 315 6102-1088
2 3/8" Reg 2 3/8" Reg 440 89 89 30 65 40 17 6102-1089
2 3/8" Reg 2 3/8" Reg 450 89 89 20 65 40 27 6102-1090
2 3/8" Reg 2 3/8" Reg 450 89 89 20       6102-1091
2 3/8" Reg 2 3/8" Reg 500 89 89 30 65 40 17 6102-1092
2 3/8" Reg 2 3/8" Reg 525 89 89 30 65 40 400 6102-1093
2 3/8" Reg 2 3/8" Reg 550 89 89 30 65 40 425 6102-1094
2 3/8" Reg 2 3/8" Reg 550 89 89 30 65 40 30 6102-1095
2 3/8" Reg 2 3/8" Reg 580 89 89 30 65 40 460 6102-1096
2 3/8" Reg 2 3/8" Reg 580 89 89 30 65 40 17 6102-1097
2 3/8" Reg 2 3/8" Reg 580 89 89 30       6102-1098
2 3/8" Reg 2 3/8" Reg 600 89 89 30 65 40 475 6102-1099
2 3/8" Reg 2 3/8" Reg 600 89 89 30 65 40 17 6102-1100
2 3/8" Reg 2 3/8" Reg 140 102 102 30 75 40 20 6102-1101
2 3/8" Reg 2 3/8" Reg 300 102 102 30 75 40 20 6102-1102
2 3/8" Reg 2 3/8" Reg 300 115 115 30 95 50 20 6102-1103
2 3/8" Reg 2 3/8" IF 144 89 89 43 65 40 25 6102-1104
2 3/8" Reg 2 3/8" IF 140 102 102 43 75 40 25 6102-1105
2 3/8" Reg 2 3/8" IF 180 89 89 43 70 50 30 6102-1106
2 3/8" Reg 2 3/8" IF 210 89 89 43 65 40 85 6102-1107
2 3/8" Reg 2 3/8" IF 300 89 89 43 65 40 175 6102-1108
2 3/8" Reg 2 3/8" IF 300 89 89 43       6102-1109
2 3/8" Reg 2 3/8" IF 500 89 89 43 65 40 25 6102-1110
2 3/8" Reg 2 3/8" IF 610 89 89 43 65 40 25 6102-1111
2 3/8" Reg 2 7/8" Reg 130 102 102 38 75 40 17 6102-1112
2 3/8" Reg 2 7/8" Reg 140 89 89 38 65 40 17 6102-1113
2 3/8" Reg 2 7/8" IF 120 114 114 43 95 50 25 6102-1114
2 3/8" Reg 2 7/8" IF 152 89 114 43 65 40 32 6102-1115
2 3/8" Reg 2 7/8" IF 300 89 114 43 65 40 175 6102-1116
2 3/8" Reg 2 7/8" IF 350 89 114 43 65 40 232 6102-1117
2 3/8" Reg 2 7/8" IF 701 89 102 30 57 102 466 6102-1118
2 3/8" Reg 3 1/2" Reg 100 96,5 101.6 43 85 76 24 6102-1119
2 3/8" Reg 3 1/2" Reg 120 114 114 43 95 50 25 6102-1120
2 3/8" Reg 3 1/2" Reg 305 114 114 43       6102-1121
2 3/8" Reg 3 1/2" Reg 370 114 114 43 95 50 275 6102-1122
2 3/8" Reg 3 1/2" Reg 550 89 114 43 95 30 10 6102-1123
2 3/8" Reg 3 1/2" IF 120 89 114 43 95 50 20 6102-1124
2 3/8" Reg 3 1/2" IF 355 89 127 43 63 40 215 6102-1125
2 3/8" Reg 3 1/2" Z 120 89 114 43 95 50 30 6102-1126
2 3/8" Reg 4 1/2" Reg 160 89 140 43 120 50 30 6102-1127
2 3/8" Reg 4 1/2" Reg 677 89 140 38 65 50 120 6102-1128
2 3/8" MA.JR. 2 7/8 Reg 130 102 102 38 75 50 25 6102-1129
2 3/8" IF ACT(NWY) 160 89 89 30 65 40 20 6102-1130
2 3/8" IF RD 70-4 160 89 89 43 65 40 20 6102-1131
2 3/8" IF RD 70-4 440 89 89 43 65 40 30 6102-1132
2 3/8" IF 2 3/8" Reg 164 89 89 30 65 40 20 6102-1133
2 3/8" IF 2 3/8" Reg 225 89 89 43 65 40 20 6102-1134
2 3/8" IF 2 3/8' Reg 305 102 102 43       6102-1135
2 3/8" IF 2 3/8 IF 170 89 89 43 65 40 20 6102-1136
2 3/8" IF 2 3/8" IF 180 89 89 43 70 50 30 6102-1137
2 3/8" IF 2 3/8" IF 203 89 89 38 76 50 57 6102-1138
2 3/8" IF 2 3/8" IF 300 89 89 43 65 50 20 6102-1139
2 3/8" IF 2 3/8" IF 400 89 89 43 65 50 250 6102-1140
2 3/8" IF 2 3/8" IF 500 89 89 43 65 50 30 6102-1141
2 3/8" IF 2 7/8' Reg 164 89 89 36 65 40 20 6102-1142
2 3/8" IF 2 7/8 IF 152 114 114 43 95 50 30 6102-1143
2 3/8" IF 3 1/2" Reg 152 114 114 43 95 50 17 6102-1144
2 3/8" IF 3 1/2" Reg 160 114 114 43 95 50 20 6102-1145
2 3/8" IF 3 1/2" Reg 180 114 114 43 76 50 28 6102-1146
2 3/8" IF 3 1/2" Reg 500 114 114 43 95 50 360 6102-1147
2 3/8" IF 3 1/2" Reg 609 89 114 38 76 63 450 6102-1148
2 3/8" IF 3 1/2" IF 160 114 114 53 95 50 20 6102-1149
2 7/8" Reg 2 3/8 MA.JR. 160 102 102 30 75 50 25 6102-1150
2 7/8" Reg 2 3/8" Reg 154 89 89 30 65 40 10 6102-1151
2 7/8" Reg 2 3/8" IF 170 89 89 43 65 40 25 6102-1152
2 7/8" Reg 2 3/8" IF 300 89 89 43 65 40 25 6102-1153
2 7/8" Reg 2 7/8" Reg 170 89 89 36 65 40 25 6102-1154
2 7/8" Reg 2 7/8" Reg 203 102 102 36 89 50 25 6102-1155
2 7/8" Reg 2 7/8" Reg 609 89 89 34 70 50 30 6102-1156
2 7/8" Reg 2 7/8" IF 120 114 114 43 95 50 30 6102-1157
2 7/8" Reg 2 7/8" IF 150 114 114 43 95 50 25 6102-1158
2 7/8" Reg 3 1/2" Reg 150 114 114 43 95 50 30 6102-1159
2 7/8" Reg 3 1/2" Reg 305 114 114 43 95 50 30 6102-1160
2 7/8" Reg 3 1/2" Reg 305 102 114 43       6102-1161
2 7/8" Reg 3 1/2" IF 160 114 114 43 95 50 25 6102-1162
2 7/8" Reg 4 1/2" Reg 160 140 140 43 120 50 30 6102-1163
2 7/8" IF 2 3/8" Reg 202 114 89 30 65 50 15 6102-1164
2 7/8" IF 2 7/8" Reg 160 114 89 36 95 50 15 6102-1165
2 7/8" IF 2 7/8" IF 160 114 114 47 95 50 25 6102-1166
2 7/8" IF 3 1/2" Reg 160 114 114 43 95 50 25 6102-1167
2 7/8" IF 3 1/2" Reg 370 114 114 43 95 50 25 6102-1168
2 7/8" IF 3 1/2" IF 160 114 114 58 95 50 20 6102-1169
2 7/8" IF 3 1/2" IF 610 114 114 58 95 50 20 6102-1170
2 7/8" IF 6 5/8" Reg 175 114 197 80 178 50 20 6102-1171
3 1/2" Reg ACT(NWY) 155 114 114 30 95 50 30 6102-1172
3 1/2" Reg BQ 159 114 55 30 95 84   6102-1173
3 1/2" Reg #28 140 127 127 36 95 50 15 6102-1174
3 1/2" Reg #28 160 114 114 36 95 50 20 6102-1175
3 1/2" Reg RD 70-4 200 114 89 43 95 50 65 6102-1176
3 1/2" Reg RD 70-4 300 114 89 43 95 50 165 6102-1177
3 1/2" Reg RD 70 4 440 114 89 43 65 40 15 6102-1178
3 1/2" Reg RD 110-4 175 140 140 58 120 50 25 6102-1179
3 1/2" Reg NC 36 160 114 114 58 95 50 25 6102-1180
3 1/2" Reg NC40 150 114 130 58 98 50 25 6102-1181
3 1/2" Reg 2" Z 210 114 76 25 65 40 15 6102-1182
3 1/2" Reg 2 1/2" Z 261 114 76 30 76 70 51 6102-1183
3 1/2" Reg 2 3/8" Reg 120 114 114 30 95 40 15 6102-1184
3 1/2" Reg 2 3/8" Reg 160 114 114 30 95 50 25 6102-1185
3 1/2" Reg 2 3/8" Reg 175 114 114 30 65 40 15 6102-1186
3 1/2" Reg 2 3/8" Reg 220 114 114 30 95 50 75 6102-1187
3 1/2" Reg 2 3/8" Reg 240 114 89 30 65 40 35 6102-1188
3 1/2" Reg 2 3/8" Reg 300 114 89 30 65 40 15 6102-1189
3 1/2" Reg 2 3/8" Reg 500 114 89 30 65 40 15 6102-1190
3 1/2" Reg 2 3/8" IF 160 114 114 43 95 40 30 6102-1191
3 1/2" Reg 2 3/8" IF 184 114 89 43 95 50 54 6102-1192
3 1/2" Reg 2 3/8" IF 368 114 89 38       6102-1193
3 1/2" Reg 2 3/8" IF 406 114 89 43 65 40 25 6102-1194
3 1/2" Reg 2 7/8" Reg 160 114 114 38 95 50 25 6102-1195
3 1/2" Reg 2 7/8" Reg 370 114 114 38 95 50 235 6102-1196
3 1/2" Reg 2 7/8" Reg 609 102 102 33 76 50 50 6102-1197
3 1/2" Reg 2 7/8" IF 125 114 114 43       6102-1198
3 1/2" Reg 2 7/8" IF 160 114 114 53 95 50 25 6102-1199
3 1/2" Reg 2 7/8" IF 160 114 114 47       6102-1200
3 1/2" Reg 2 7/8" IF 320 114 114 43 95 50 185 6102-1201
3 1/2" Reg 2 7/8" IF 410 114 114 53 95 50 10 6102-1202
3 1/2" Reg 2 7/8" IF 440 114 114 43 95 50 305 6102-1203
3 1/2" Reg 2 7/8" IF 609 114 114 43 90 50 30 6102-1204
3 1/2" Reg 3 1/2" Reg 160 114 114 43 95 50 20 6102-1205
3 1/2" Reg 3 1/2" Reg 200 114 114 43 95 50 25 6102-1206
3 1/2" Reg 3 1/2" Reg 228 114 114 43 89 76 25 6102-1207
3 1/2" Reg 3 1/2" Reg 267 114 114 43 89 70 25 6102-1208
3 1/2" Reg 3 1/2" Reg 275 114 114 43       6102-1209
3 1/2" Reg 3 1/2" Reg 305 114 114 43       6102-1210
3 1/2" Reg 3 1/2" Reg 355 114 114 43       6102-1211
3 1/2" Reg 3 1/2" Reg 370 114 114 43 95 50 20 6102-1212
3 1/2" Reg 3 1/2" Reg 400 114 114 43 95 50 260 6102-1213
3 1/2" Reg 3 1/2" Reg 406 114 114         6102-1214
3 1/2" Reg 3 1/2" Reg 406 114 114 43 95 50 254 6102-1215
3 1/2" Reg 3 1/2" Reg 450 114 114 43 95 50 15 6102-1216
3 1/2" Reg 3 1/2" Reg 457 114 114 43 89 60 75 6102-1217
3 1/2" Reg 3 1/2" Reg 500 114 114 43 95 50 360 6102-1218
3 1/2" Reg 3 1/2" Reg 500 140 140 43 120 50 25 6102-1219
3 1/2" Reg 3 1/2" Reg 750 114 114 43 95 50 20 6102-1220
3 1/2" Reg 3 1/2" Reg 787 114 114 43 89 76 102 6102-1221
3 1/2" Reg 3 1/2" Reg 900 114 114 43 95 50 20 6102-1222
3 1/2" Reg 3 1/2" IF 160 114 114 58 95 50 25 6102-1223
3 1/2" Reg 3 1/2" Beco 609 127 127 38 76 108 63 6102-1224
3 1/2" Reg 3 1/2" Beco 609 140 140 38 76 108 63 6102-1225
3 1/2" Reg 4" IF 482 114 152 58 95 50 312 6102-1226
3 1/2" Reg 4 1/2" Reg 132 114 146 58 120 50 20 6102-1227
3 1/2" Reg 4 1/2" FH 160 114 146 76 120 50 20 6102-1228
3 1/2" Reg 6 5/8" Reg 175 197 197 58 178 50 30 6102-1229
3 1/2" FH 3 1/2" FH 460 140 140 58 120 50 30 6102-1230
3 1/2" FH 4 1/2" Reg 140 140 140 58 120 50 25 6102-1231
3 1/2" IF 2 3/8" IF 195 120 89 43 65 40 15 6102-1232
3 1/2" IF 2 7/8" IF 200 120 114 53 95 50 25 6102-1233
3 1/2" IF 3 1/2" Reg 200 120 114 43 95 50 25 6102-1234
3 1/2" IF 3 1/2" Reg 254 127 127 43 95 50 79 6102-1235
3 1/2" IF 3 1/2" Reg 457 120 120 43 95 50 282 6102-1236
3 1/2"IF 3 1/2" IF 200 120 120 58 95 50 25 6102-1237
3 1/2" IF 4 1/2" Reg 140 140 140 58 120 50 20 6102-1238
3 1/2" IF 6 5/8" Reg 173 197 197 80 178 50 30 6102-1239
3 1/2" Весо 3 1/2" Reg 228 114 114 43       6102-1240
3 1/2" Весо 3 1/2" Beco 228 127 120 38 95 50 38 6102-1241
3 1/2" Весо 5 1/2" Reg 375 171 127 58 88.9 50 171 6102-1242
4" FH 2 7/8" IF 175 140 114 53 120 40 20 6102-1243
4 1/2" Reg NC35 235 146 114 58 95 50 15 6102-1244
4 1/2" Reg 2 3/8" Reg 219 146 89 30 65 40 20 6102-1245
4 1/2" Reg 2 3/8" IF 219 146 89 43 65 40 15 6102-1246
4 1/2" Reg 2 7/8" Reg 200 146 89 38 120 50 30 6102-1247
4 1/2" Reg 2 7/8" IF 210 146 114 53 95 50 15 6102-1248
4 1/2" Reg 2 7/8" IF 600 140 114 43 120 50 445 6102-1249
4 1/2" Reg 3 1/2" Reg 235 146 114 43 95 50 15 6102-1250
4 1/2" Reg 3 1/2" Reg 305 146 114 43 95 50 15 6102-1251
4 1/2" Reg 3 1/2" Reg 420 146 114 43 95 50 25 6102-1252
4 1/2" Reg 3 1/2" Reg 500 140 140 43 120 50 25 6102-1253
4 1/2" Reg 3 1/2" FH 235 140 114 58 95 50 15 6102-1254
4 1/2" Reg 3 1/2" IF 235 146 114 58 95 50 15 6102-1255
4 1/2" Reg 3 1/2" Beco 609 140 120 38 76 108 63 6102-1256
4 1/2" Reg 4 1/2" Reg 170 146 146 58 120 50 20 6102-1257
4 1/2" Reg 4 1/2" Reg 317 140 140 58 120 50 20 6102-1258
4 1/2" Reg 4 1/2" Reg 317 168 168 58 120 50 20 6102-1259
4 1/2" Reg 4 1/2" Beco 889 178 178 58 127 50 76 6102-1260
4 1/2" Reg 6 5/8" Reg 180 146 200 58 178 50 35 6102-1261
4 1/2" FH 2 7/8" IF 200 146 115 53 120 50 20 6102-1262
4 1/2" FH 3 1/2" Reg 200 146 115 43 120 50 20 6102-1263
4 1/2" FH 3 1/2" IF 200 146 120 58 120 50 20 6102-1264
4 1/2" FH 4 1/2" Reg 200 146 146 58 120 50 20 6102-1265
4 1/2" FH 6 5/8" Reg 260 146 197 80 120 50 20 6102-1266
4 1/2" IF 4 1/2" IF 200 152 152 80       6102-1267
5 1/2" IF 4 1/2" IF 300 197 168 70       6102-1268
6 5/8" Reg NC 35 260 197 114 58 95 50 15 6102-1269
6 5/8" Reg 2 7/8 Reg 295 197 102 36 75 40 20 6102-1270
6 5/8" Reg 2 7/8" IF 300 197 114 53 120 50 50 6102-1271
6 5/8" Reg 3 1/2" Reg 300 197 114 43 120 50 50 6102-1272
6 5/8" Reg 3 1/2" Reg 857 197 114 43 90 50 30 6102-1273
6 5/8" Reg 3 1/2" IF 260 197 120 58 95 50 15 6102-1274
6 5/8" Reg 4 1/2" Reg 293 197 140 58 120 50 20 6102-1275
6 5/8" Reg 4 1/2" Reg 285 197 168 58 120 50 30 6102-1276
6 5/8" Reg 4 1/2" Reg 750 197 168 58 140 50 30 6102-1277
6 5/8" Reg 6 5/8" Reg 207 194 194 80 152 50 30 6102-1278
6 5/8" Reg 6 5/8" Reg 207 203 203 80       6102-1279
6 5/8" Reg 6 5/8" IF 198 200 225 89 178 50 48 6102-1280
7 5/8" Reg 6 5/8 Reg 200 225 200 89 178 50 50 6102-1281
7 5/8" Reg 6 5/8" Reg 300 225 200 89 178 50 50 6102-1282
7 5/8" Reg 6 5/8" Reg 609 225 197 80 114 50 50 6102-1283
10" Beco 10" Beco 305 305 305 120 265 80 35 6102-1284
M62 RD 50-6 275 89 75 30 50 40 200 6102-1285
M62 2 3/8" Reg 275 89 75 30 50 50 200 6102-1286
M70 RD 50-6 150 89 70 30 50 40 50 6102-1287
M70 RD 70-6 111 89 89 36 65 40 11 6102-1288
2 3/8" Reg RD 50-6 165 76 76 30 50 40 110 6102-1289
2 3/8 Reg M62 215 76 76 30 70 25 180 6102-1290
2 3/8" Reg M62 165 89 89 30 80 30 135 6102-1291
2 3/8" Reg M62 215 89 89 30 70 25 190 6102-1292
2 7/8" Reg M62 215 102 102 30 75 30 175 6102-1293
3 1/2" Reg M62 184 114 114 30 95 25 159 6102-1294
3 1/2" Reg M62 215 114 114 30 95 30 175 6102-1295


Назад в раздел
